#119496

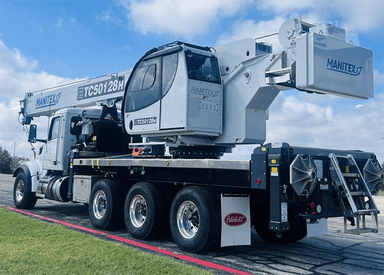

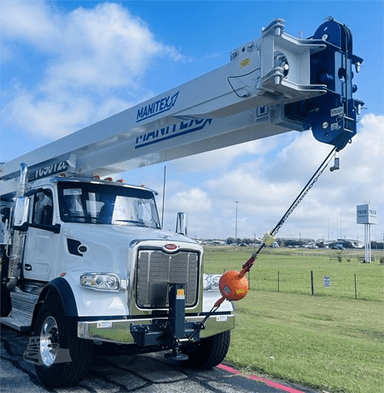

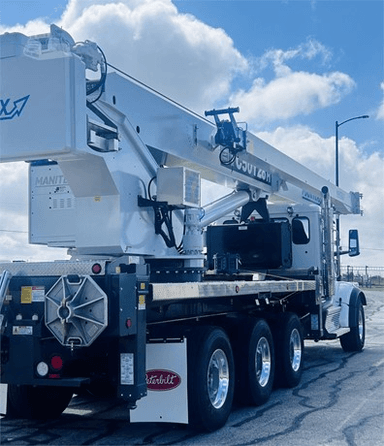

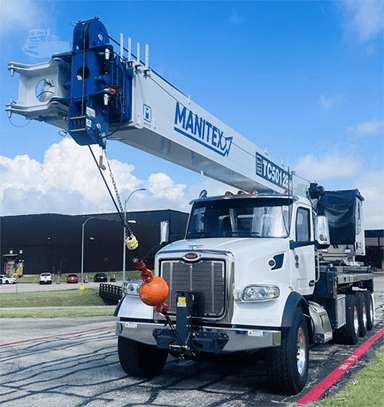

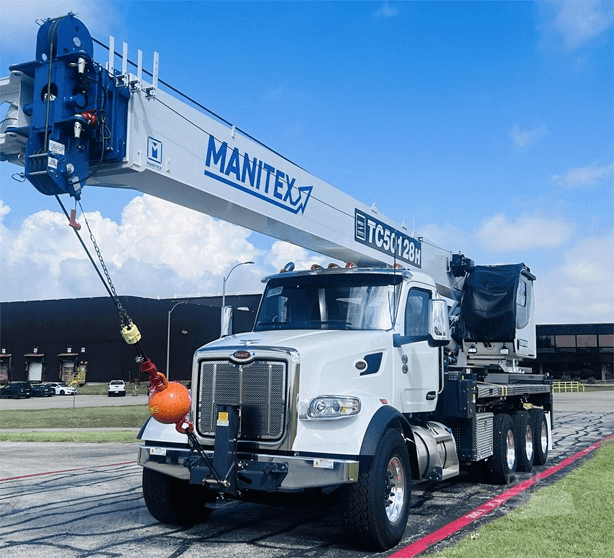

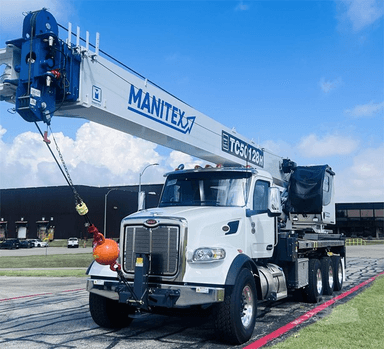

MANITEX 50128SHL

Standard features:

128’ Four Section Telescopic Boom with heavy lift option,

7-ton hook and ball,

2-speed Hoist w/Grooved Drum,

Roller Tensioner,

Piston Motor,

4- load sheave quick reeve boom head,

 Externally Wired anti-two block w/lockout,

Boom hoist cylinder,

System pressure gauge,

360° Area of operation,

Continuous rotation,

Tilting cab,

Heater/air conditioner,

Upper hatch guard/Windshield cover,

Engine Monitoring System,

Removeable boom rest,

Engine start/stop,

Combined Free Swing and non-Free Swing functionality,

Hydraulic Rotation drum indicator,

Thumb operated electronic throttle,

1-variable displacement pump/1-Gear pump-CCW Rotation-standard,

Boom length and angle indicators,

Radio remote ready,

400’ 5/8” Dia. Rotation resistant Wire rope, 500’ 5/8” Dia. Rotation Resistant Wire Rope,

Audible Outrigger Motion Alarm,

115 gal or 155 gal Hyd Reservoir w/suction strainer & ball valve,

Turret,

Rotation bearing and Swing system – Mechanical houselock, New Load moment indicator – Full visual/Audio Capacity Alert w/shutoff, ROC Solid outriggers; 4 out and down outriggers, 22’ over-all spread, Features a hand held Radio Operated Controller and includes capacities for immediate 13’4” and retracted 7’2” spreads,

Remote winch controls included with hand held radio controller for the outriggers,

 Outrigger monitoring system-verification only,

Front bumper stabilizer – for short lower frame configurations only,

2 retractable ladders/1-Aluminum Easy Access Maintenance Ladder,

Diamond plated aluminum decking, Oil cooler, bubble level, Signal horn,

Third wrap limit for main winch and auxiliary winch, Electric over hydraulic controls,

Operators service/parts manuals,

102” Wide Platform Standard.

Additional Options Included:

• 6400 lb Ctwt Special for HL – Requires Engineering Approval

• Offset Tele Jib-32’ Retracted, 49’ Extended • Sub Frame-Short – Std with FBS Required

• Front bumper stabilizer

• Standard mount installation

• Braden Winch w/Piston Motors in lieu of Standard

• 35 Ton 3-Sheave Hook Block 1-7 part line

• Hot shift PTO

• Aluminum Tool Box (36” x 24” x 24”)

• Chassis Mount MOUNTED ON 2025 PETERBILT 567 Mounted on a 2025 Peterbilt 567 tractor chassis with a Cummins X15 525@1900, GOV@1900, 1850@91000, diesel engine, automatic, Eaton EXDP-18F118D Automated Transmission, PACCAR FX-20 Steer axle 20,000 lb. front axle, Meritor RZ-XX166 Tri-Drive rear axle, Full set of Alcoa polished wheels, 26” 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Gray, ConcertClass AM/FM/WB 3.5,USB port with Bluetooth radio, Air horn mounted under cab, dual heated mirrors, outside stainless steel sun visor, Unit is painted Axalta Two Stage white.
